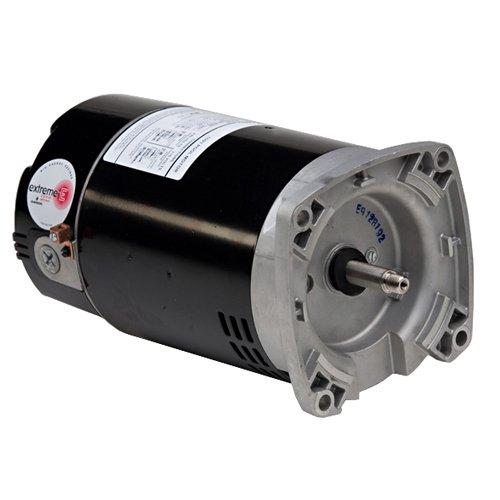

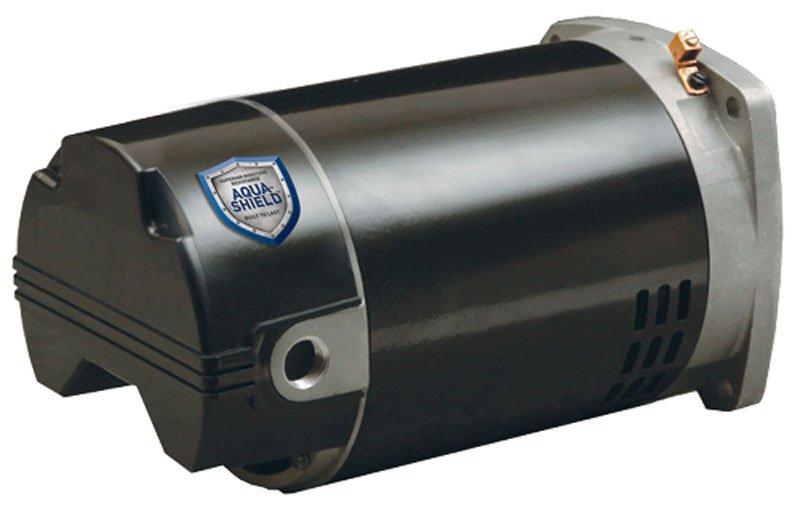

U.S. Motors - Emerson 56Y Square Flange Single Speed 2HP Full Rated Pool and Spa Motor
$349.99
The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
More Details
How to get it
Store Pickup
Pickup In Store
The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
- Two compartments
- Shaft Threads 1/2-20 UNF-2A
- 50 degrees Celsius ambient
- 1081 Design
- Continuous Duty
- Switchless design
- Voltage selection device (dual voltage only)
- Service Factor: 1.3
- RPM: 3450
- Amps: 5.9-5.5/11.0
- Length without Shaft: 12.74
- 11.5A 230V
The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 2 HP rating delivers optimum performance.
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Square Flange motor is built to last
Advanced in its design, the Emerson 56 Square Flange motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 56 Y-Frame Square Flange motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
| Horsepower: | 2 HP |
| Speed Settings: | Single Speed |
| Flange Type: | Square Flange |
| Voltage: | 240V |
| Pool Type: | In Ground |
| Voltage: | 230V |
| Service Factor: | 1.25 - 1.50 |
| Motor Frame: | 56Y Frame |
| Rating Type: | Full-Rated |
| Energy Efficiency: | Standard |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors |
See Owner's Manual for details
