Pentair - EC-145240 Tagelus TA100D Top Mount 30.5" Pool Sand Filter with 2" Multiport Valve - Limited Warranty

Item No. 387200 | Manufacturer SKU: EC-145240
Item No. 387200 | Manufacturer SKU: EC-145240
Pentair  EC-145240 Tagelus TA100D Top Mount 30.5 Pool Sand Filter with 2 Multiport Valve  Limited Warranty
Pentair  EC-145240 Tagelus TA100D Top Mount 30.5 Pool Sand Filter with 2 Multiport Valve  Limited Warranty
$1,269.00

FREE Installation on Inground Sand Filters until 9/26! Materials and Trip Charges may still apply.

Call 1-800-537-5437 for Installation Details.

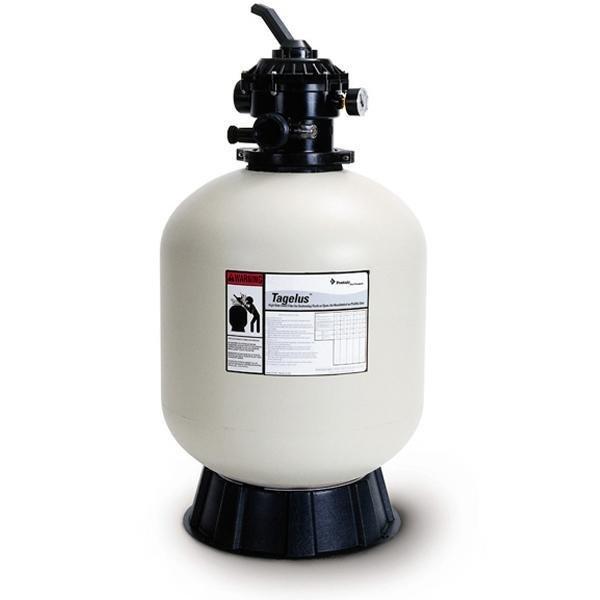

The Pentair Tagelus TA100D 30-1/2" Sand Filter features a durable fiberglass-reinforced tank with one-piece construction, providing many years of use. More Details
How to get it
In-store Pickup - Not Available for this item

The Pentair Tagelus TA100D 30-1/2" Sand Filter features a durable fiberglass-reinforced tank with one-piece construction, providing many years of use.
  • 2" Valve included
  • Compatible with valve 261185
  • The Tagelus tank is constructed in one piece from fiberglass reinforced material to deliver unmatched strength and durability for years of service
  • Easy does it. The six-position Hi-Flow valve has a manual air relief valve and a sight glass to make inspection, routine maintenance and operation fast, easy and always safe. Pressure gauge also included
  • Tagelus filters provide years of service with only periodic backwashing to remove trapped debris from the sand
  • A special diffuser creates a uniform sand bed that consistently traps more dirt without impeding the water flow or letting it race through too fast--the result is more effective filtration and longer times between backwashing
  • Time-proven internal design ensures water is exposed to maximum surface area of sand for optimal filtration performance and more efficient backwashing
  • Flow system design also ensures maximum run times between backwashing to save you time
  • Combination sand and water drain speeds servicing and winterizing
  • Maximum Operating Pressure 50 psi
  • All internal parts are threaded for fast and easy service
  • Requires 600 lbs of sand

The Pentair Tagelus TA100D Sand Filter has a 30-1/2" tank diameter that requires 600 lbs of sand for operation used on in ground or above ground pools. The Pentair TA100D Sand Filter includes all the laterals inside the tank, filter tank base, lid closure, air relief valve, pressure gauge, and 2" Multiport Valve.

The Tagelus TA100D has a durable fiberglass-reinforced tank with one-piece construction. This feature enhances durability and product life. The Pentair TA100D, like other sand filters, offers the least amount of maintenance compared to other filter types. This sand filter is capable of filtering down to 20-40 microns.

Common Questions:

What are the dimensions of the tank?
  • Tank Dimensions: (DxH) 30-1/2" x 47-1/2"
  • Weight: 47 lbs without sand.
How much sand do I add?
  • The Pentair TA100D uses 600 lbs of sand.
What is the GPM flow rate?
  • The GPM flow rate is 100 GPM.
What does Tagelus TA100D come with?
  • The TA100D comes with the tank, all the laterals inside the tank, filter tank base, lid closure, air relief valve, Top Mount 2" Multiport Valve, and pressure gauge.
What is the warranty for the Pentair Tagelus TA100D?
  • The TA100D carries a manufacturer warranty of 60 day if installed by a non professional or a 1 year warranty if installed by a professional.


California Residents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Type: Pool Filter
Filter Type: Sand
Pool Type: In Ground
Filter Diameter: 30-1/2 in
Installation Type: Residential
Manufacturer: Pentair
Filtration Area: 4.90 sq ft
Warranty: 1-Year

One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
